DL 1 JU German Amateur Radio Station

Meine Funkstation im Laufe der Jahre (von 1971 - 2019)


My radio station over the years (from 1971 to 2019):

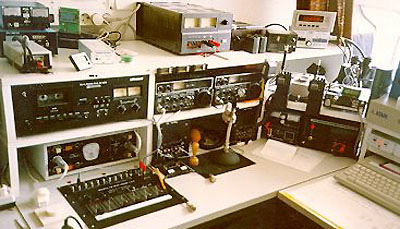

1980


...2m/70cm und Packet-Radio-Station, Standort Mainz

Antennenhöhe 270m (Hochhaus on Top Mz-Lbg.).


Man erkennt in Bildmitte 2 moderne Transceiver der damaligen Zeit: ICOM IC-271 und IC-471.

Dazu diverse Hand-und Mobilgeräte die als Packet-Radio- Mailbox und Digipeater geschaltet waren.

Weiter diverse Selbstbaugeräte.


Steuer-und Mailbox-Rechner sind hier 2 Atari's mit selbst-

programmierter Mailboxsoftware in GFA-Basic...

es waren die Anfänge in Packet-Radio.


1971

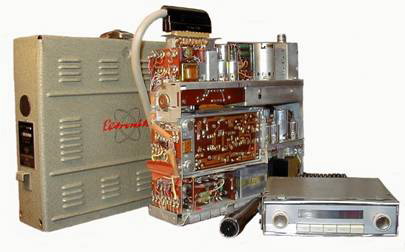

...meine erstes Funkgerät ! Wer kennt es noch ?


KFT-160 Fa. Bosch damalige Taxifunkgeräte,

original Frequenz auf 148-154 MHz.

Funkamateure konnten seinerzeit die ausgesonderten Geräte aufkaufen und in das 2m-Band (144-146 MHz) umbauen. Sie arbeiteten einwandfrei und taten viele Jahre ihren Amateur-

funkdienst als Fest-oder Mobilstation.

Homestandort: Essen/NRW


Betriebsspannung 6/12V > Wandler auf 320V für Senderöhre

Sendeleistung FM ca. 12 Watt mit einer QQE 03/12.

2 Kanäle quarzgesteuert.

DC 1 JU

Kanal 1: 145,000

Kanal 1: 145,200


1974

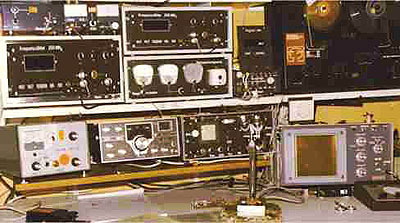

...einer meiner ersten Funkstationen.


Die meisten Geräte sind Selbstbaugeräte.

Besonderheit ist die SSTV-Station (Schmalbandfernsehen)

Arbeitfrequenz war außschließlich das 2m-Band,

aber mit 100 Watt HF Eigenbau Röhrenendstufe QQE 06/40.

Ganz links im Bild und unten...



... one of my first radio stations.


Most devices are self-built devices.

Special feature is the SSTV station (slow scan television)

Working frequency was excluding the 2m band,

but with 100 watts of VHF homemade tube PA QQE 06/40.

Far left in the picture and below ...

SSTV



Senderöhre

QQE 06/40


Innenaufbau PA-Sendemodul


2012

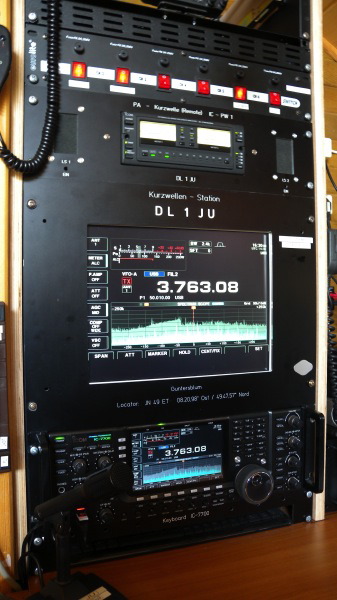

...KW-Station komplett in einem 19"-Schrank:

Equipment: IC-7700, IC-PW1- Remote (1KW-PA)





... KW station completely in a 19 "-Rack:

Equipment: IC-7700, IC-PW1-Remote (1KW-PA)



2010

...komplett betriebsbereite Amateurfunkstation

für KW, UKW, VHF, UHF, SHF


Betriebsarten:

Fonie, Telegrafie, PSK, Packet-Radio, Digital-DStar und Funk über Satelliten

Geräte:

IC-7700, IC-PW 1, TS-2000, TS-2000X,

TM-D700, TM-D710, TH-D7, ID-1, ID-88


3 Rechner (PC's) für Logbuch, Fernschreibfunk, Antennensteuerung für Satelliten (autom. Nachführsystem), Doppler-Frequenzausgleich

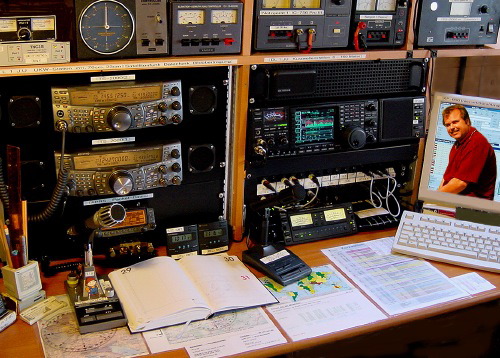

DSC00041a Kopie.jpg

2008

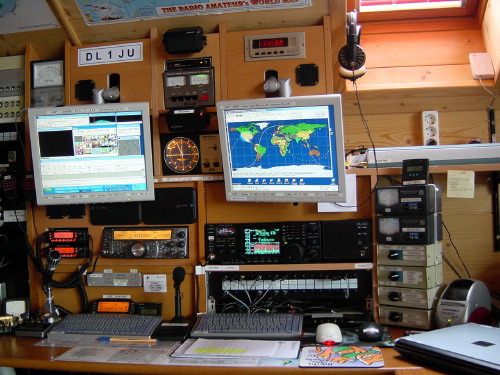

...war die Funkstation ähnlich:

Freuqenzbereich von 23cm bis 160m,

als KW-TRX war aber damals der IC-756 Pro III in Betrieb.


Fast alles in 19"-Einbautechnik


Betriebsarten:

Fonie, Telegrafie, PSK, Packet-Radio, Digital-DStar und Funk über Satelliten



3 Rechner (PC's) für Logbuch, Fernschreibfunk, Antennensteuerung für Satelliten (autom. Nachführsystem), Doppler-Frequenzausgleich


2007


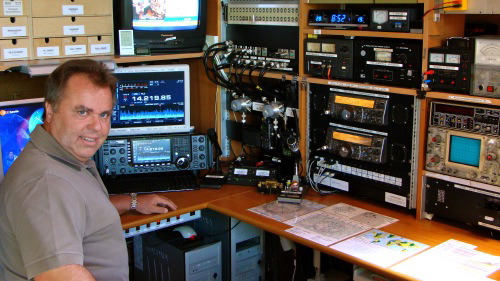

...eine Vorstufe der Einbautechnik zu 2008, aber noch mit Holzverkleidungen.


Betriebsarten:

Fonie, Telegrafie, PSK, Packet-Radio, Funk über Satelliten


Geräte:

IC-756 Pro III, IC-910, TS-2000, TM-D700, TH-D7, Kurzwellen-Röhren-PA 750 Watt


2 Rechner (PC's) für Logbuch, Fernschreibfunk, Antennensteuerung für Satelliten (autom. Nachführsystem), Doppler-Frequenzausgleich

2005


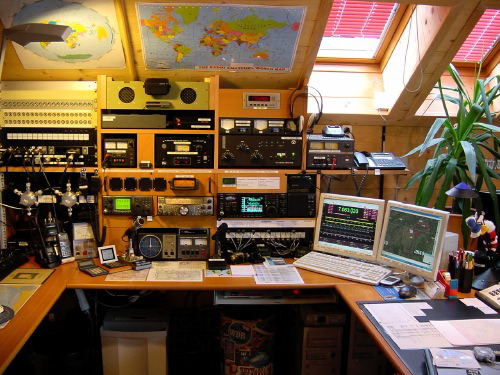

...diese Amateurfunkstation war speziell auf Satellitenbetrieb ausgerichtet.


Betriebsarten:

Fonie, Telegrafie, PSK, SSTV, Packet-Radio


Geräte:

IC-756 Pro III, TS-2000, TM-D700, TH-D7, FT-8800


2 Rechner (PC's) für Logbuch, Fernschreibfunk, Antennensteuerung für Satelliten (autom. Nachführsystem), Doppler

Frequenzausgleich.


2002

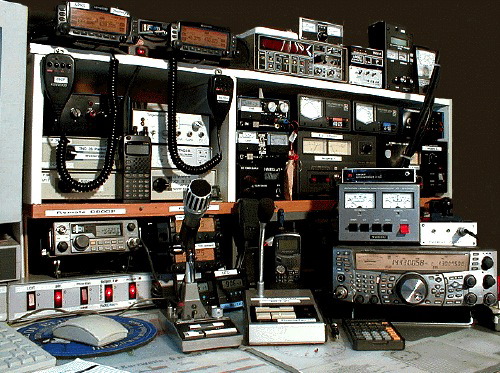

...diese Funkstation aus diesen Jahren war noch hauptsächlich von UKW-Geräten geprägt. Neustes Gerät dort ist der TS-2000


und die Station wanderte vom Keller ins Dachgeschoss, nah an die Antennen !


Geräte:

TS-2000, 4 x TM-D700, FT-290, TH-D7

u. weitere diverse Handfunkgeräte.

Dazu sehr viele Selbstbaugeräte,

Wetterfunk und Packet-Radio


1 Rechner (PC's) für Logbuch, Fernschreibfunk, Packet-Radio, APRS usw.


1996

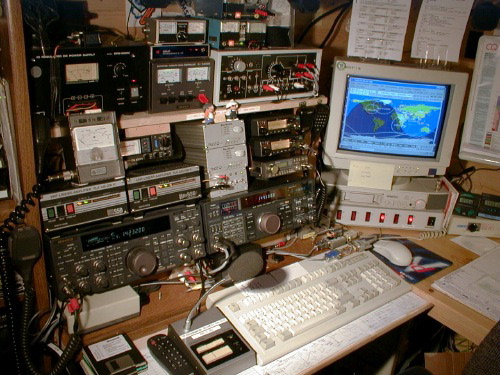

...Amateurfunkstation auf kleinstem Raum, damals noch im Keller.


Betriebsarten:

RTTY, PSK-31, Packet-Radio, und die ersten Funkverbindungen über Satelliten.


Geräte:

TS-870, TS-790, FT-2700 u.v.a.

2m / 70cm-Transistor-PA's

diverse Selbstbaugeräte


1 Rechner (PC) für Logbuch, Fernschreibfunk, Antennensteuerung für Satelliten (autom. Nachführsystem), Doppler-Frequenzausgleich


Standort: Guntersblum JN49ET


...my first radio! KFT-160 Fa. Bosch old taxi radio equipment, original frequency at 148-154 MHz. Radio amateurs were then able to buy the rejected equipment and convert it into the 2m band (144-146 MHz). They worked flawlessly and for many years did their amateur radio service as a fixed or mobile station. Hometown: Essen/NRW


Operating voltage 6 / 12V> Converter to 320V for transmitter tube, TX power FM approx. 12 watts with a QQE 03/12. Two channels quartz-controlled.

....2m / 70cm and Packet Radio Station, located in Mainz, Antenna height 270m (tower-building on the Top).


In the middle of the picture you can see two modern transceivers of the time: ICOM IC-271 and IC-471. Various handheld and mobile devices connected as a packet radio mailbox and digipeater. Next various self-built equipment.


Control and mailbox computers are here 2 Atari's with self programmed mailbox software in GFA-Basic ... they were the beginnings in packet radio.

.... amateur radio station in the smallest of spaces, at that time still in the cellar. Operating modes: RTTY, PSK-31, Packet Radio, and the first satellite communications.

Equipment: TS-870, TS-790, FT-2700 etc., 2m / 70cm transistor PA's, various self-built equipment


1 computer (PC) for logbook, teleprinter radio, antenna control for satellites (automatic tracking system), Doppler frequency compensation. Location: Guntersblum JN49ET

... this radio station from those years was still mainly influenced by VHF equipment. The newest device there is the TS-2000 and the station wandered from the basement to the attic, close to the antennas!


Equipment: TS-2000, 4 x TM-D700, FT-290, TH-D7 and other various handheld radios. In addition a lot of self-construction equipment, Weather radio and packet radio. 1 computer for logbook, teleprinter, packet radio, APRS, etc.

... this amateur radio station was specially designed for satellite operation.

Operating modes: Fonie, Telegraphy, PSK, SSTV, packet radio

Equipment: IC-756 Pro III, TS-2000, TM-D700, TH-D7, FT-8800. Two computers for logbook, teleprinter radio, antenna control for satellites (automatic tracking system), Doppler frequency compensation.

....a precursor of the installation technique for 2008, but still with wood paneling.

Operating modes: Fonie, telegraphy, PSK, packet radio, radio via satellite

Equipment: IC-756 Pro III, IC-910, TS-2000, TM-D700, TH-D7, Shortwave Tube PA 750 Watt

2 computers for logbook, teleprinter radio, antenna control for satellites (automatic tracking system), Doppler frequency compensation

... the radio station was similar: Freq range from 23cm to 160m, as RF-TRX but was then the IC-756 Pro III in operation. Almost everything in 19 "mounting technology.

Operating modes: Fonie, telegraphy, PSK, packet radio, digital DStar and radio via satellite. 3 computers for logbook, teleprinter radio, antenna control for satellites (automatic tracking system), Doppler frequency compensation

... fully operational amateur radio station for SW, FM, VHF, UHF, SHF

Operating modes: Fonie, telegraphy, PSK, Packet radio, digital DStar and radio via satellite.

Equipment: IC-7700, IC-PW1, TS-2000, TS-2000X, TM-D700, TM-D710, TH-D7, ID-1, ID-88.

3 computers (PC's) for logbook, teleprinter radio, antenna control for satellites (automatic tracking system), Doppler frequency compensation

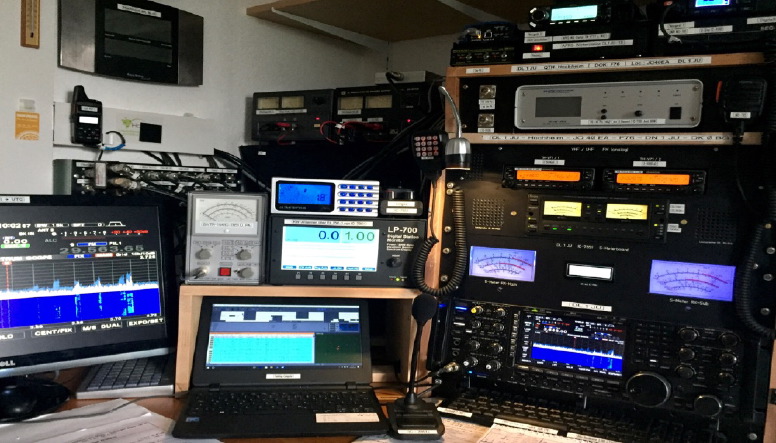

2019

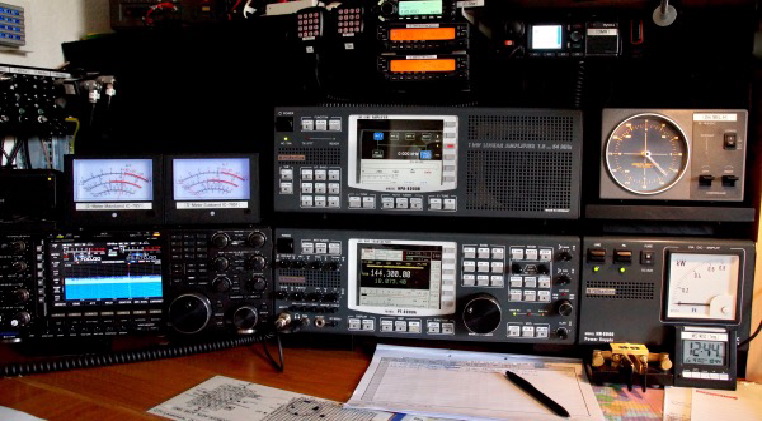

brandneue KW-Station: PT-8000A + HPA-8000B (Hilberling), IC-7851 (ICOM). Diverse VHF/UHF Geräte z.B. IC-9700 (ICOM) für die Betriebsarten: Fonie, D-Star, DMR, SAT-Funk usw.


brand new KW station: PT-8000A + HPA-8000B (Hilberling), IC-7851 (ICOM). Various VHF / UHF devices e.g. IC-9700 for the operating modes: Fonie, D-Star, DMR, SAT-Radio etc.


2018

KW und UKW-Station bestehend aus folgenden Geräten:

IC-7851 (ICOM), IC-PW1 (1KW-PA ICOM), TR-144 Pro (2m Transverter Kuhne), 2 x TM-D71 (Kenwood), ID-4100 (D-Star ICOM), MD-785 (DMR Hytera), LP-700 (digtal Stationsmonitor).


SW and VHF station consisting of the following devices:

IC-7851 (ICOM), IC-PW1 (1KW-PA ICOM), TR-144 Pro (2m Transverter Kuhne), 2x TM-D71 (Kenwood), ID-4100 (D-Star ICOM), MD-785 ( DMR Hytera), LP-700 (digtal station monitor).
